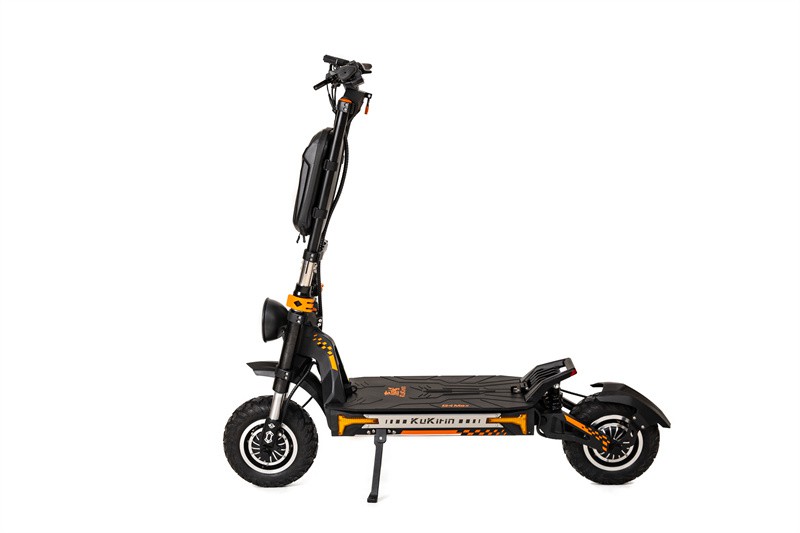

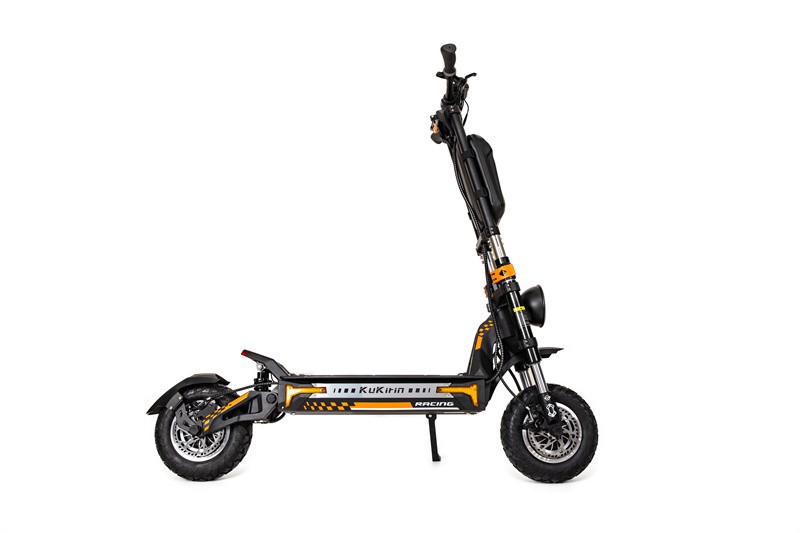

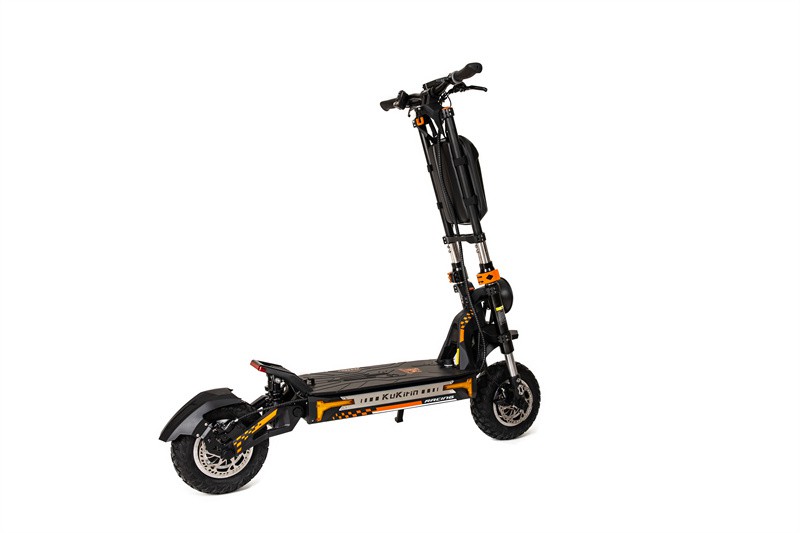

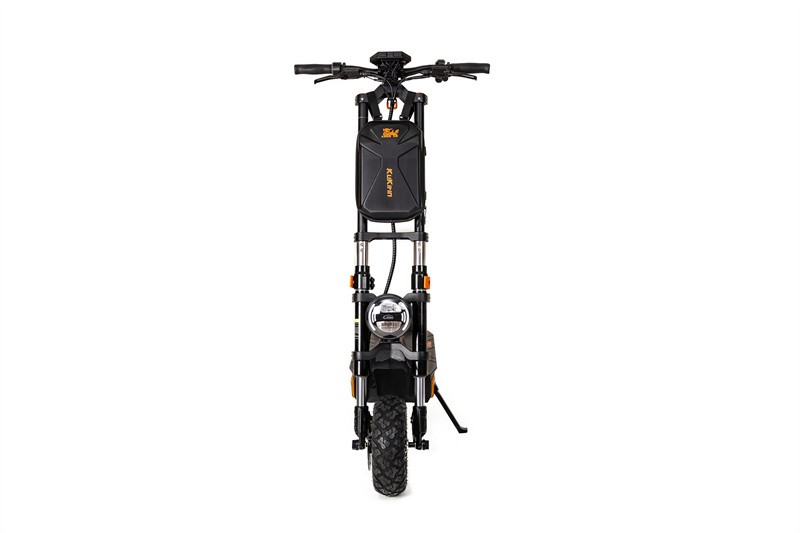

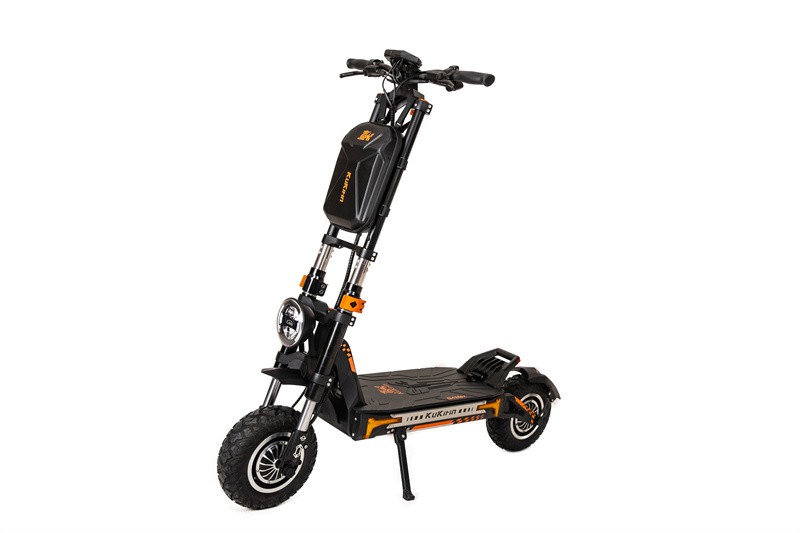

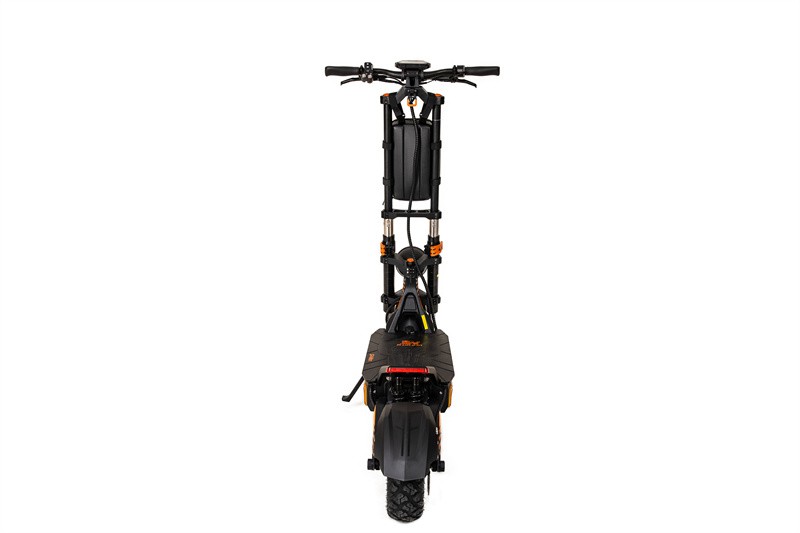

KUKIRIN G4 MAX Electric Scooter - Your Ideal Partner for Green City Travel in Europe
✅ CE Certified ✅ Long Battery Life ✅ Fast Charging ✅ Foldable Design ✅ Europe Local After-Sales
Who We Are
We are a professional manufacturer & exporter of electric scooters with more than 10 years of R&D and production experience, focusing on the European market for many years. Our factory strictly follows EU production standards, has a complete quality control system, and supplies tens of thousands of electric scooters to European countries (Austria, Belguim, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Netherlands, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Poland, every year.
Our Advantages
•Professional R&D team, continuously optimizing product performance and safety performance
•Full-process quality inspection, 100% testing before shipment
•Abundant EU market export experience, familiar with EU customs clearance and product standards
•Stable supply chain, supporting mass orders and OEM/ODM customization
•Perfect after-sales service system, matching European market after-sales requirements
Product Parameter
| Model | KuKirin G4 Max | Measurement reference standard(note:unit) | ||
| Packing info | Packing size | 1450*350*715(inner)/1470*355*740mm(outer) | Inner and outer box size(mm) | |
| Product basic parameter | Weight | Product G.W | 78.5±0.5kg | Total weight of product and canton(kg) |
| Product N.W | 64.5±0.5kg | Scooter weight(kg) | ||
| Size | Expend size | 1425*640*1340mm | L*W*H(mm) | |

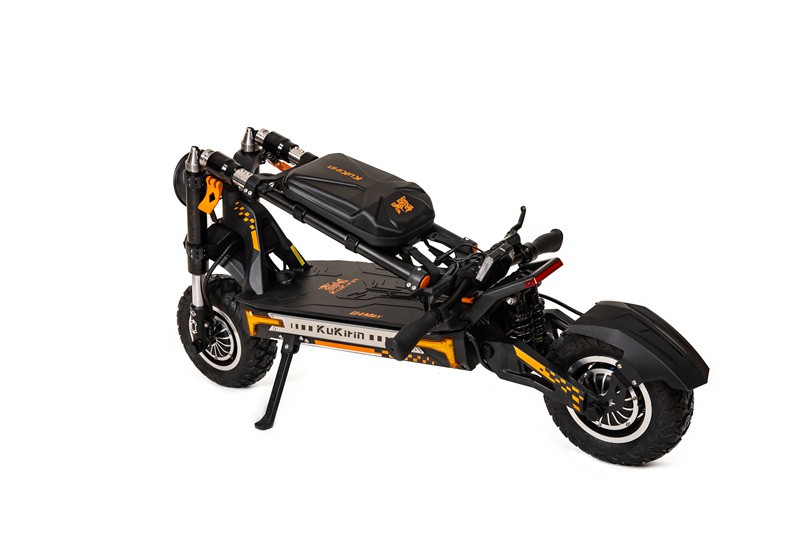

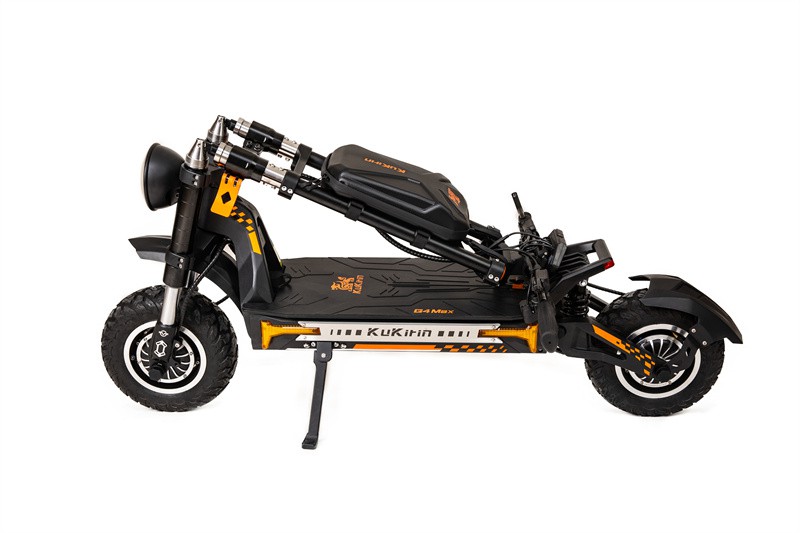

| Fold size | 1425*640*668mm | L*W*H(mm) | ||
| Handlebar size | 640mm | Diameter(mm) | ||
| Pedal Size | 640*305mm | L*W(mm) | ||
| Pedal to Handlebar size | 1035mm | Pedal to highest handlebar distance(mm) | ||
| Chassis height | 210mm | height from chassis to ground floor(mm) | ||
| Max Load | 150kg | kg | ||
| Speed | Maxium speed | 86km/h | Max speed of 65KG load(km/h) | |
| 1st,2nd,3rd(idling) | 36km/h,66km/h,68km/h | Max speed under idling condition(km/h) | ||
| 1st,2nd,3rd (65kg load) |
38km/h,70km/h,86km/h | Max speed of 65KG load(km/h) | ||
| Mileage | Middle speed mileage(65kg load) | ≤95km | Full power,until to stop(km) | |
| Performance | Climbing ability | ≤38° slope | 65KG load,Max climbing ability(°) | |
| Brake system | Front and rear oil disc&e-brake | Disc brake,E-brake,other | ||
| Brake distance | 6-10m | Max speed braking stopping distance(m) | ||
| Waterproof level | IP54 | IP | ||
| Material | Frame material | Aluminum alloy | ||
| Motor | Motor type | Brushless DC Hub Motor(front and rear wheel dual drive) | Integrated/split/other hub motor | |
| Voltage | 60V | V | ||
| Accelerate mode | Sine wave | Sine wave/square wave/dual modes | ||
| Power date | Rated power | 1600W*2 | W | |
| Instantaneous maximum power | 2000W*2 | W | ||
| Rated speed | 1900 rpm | rpm or r/min | ||
| Max output torque | 41 N·m | N·m | ||
| Battery | Model | 21700 Lithoum battery | ||
| Voltage | 60V | V | ||
| Capacity | Single cell capacity | 4400mAh | mAh | |
| Battery pack capacity | 35.2Ah | Ah | ||
| Standard power consumption | 2.112kW·h | kW·h | ||
| Battery protect system | Battery protective board(BMS) | |||
| Charger | Input voltage | 200-240VAC~50/60Hz | VAC | |
| Input current | 5A | A | ||
| Output voltage | 67.2V | VDC | ||
| Output current | 5A | A | ||
| Charging time | 7-8h | h | ||
| Shock absorber system | Front shock absorber | Hydraulic inverted shock absorber | Spring shock absorption/Hydraulic damping shock absorption/other | |
| Rear shock absorber | Dual hydraulic damping shock absorption | Spring shock absorption/Hydraulic damping shock absorption/other | ||
| Light System | Headlight type | LED | light source | |
| Headlight power | 15W | W | ||
| Headlight illumination angle | 130° | Illumination viewing angle width(°) | ||
| Headlight illumination area | 35㎡ | The maximum area normally projected onto the ground(㎡) | ||
| Turn light | Yes | |||
| Taillight | Yes,The taillights are on when the headlight is on,taillight flash when breaking. | |||
| Tire | Size | 12in | tire size( in/mm) | |
| Type | Vacuum tire | Off road/Honeycomb/Vacuum/Pneumatic tire | ||
| Optimum tire pressure | 282kPa(41psi) | kPa/psi | ||
| Insrument | Type | LCD | LED/LCD/OLED | |
| Display material | Instrument case ABS/instrument bracket PA6 | |||
| Size | 133*76mm | L*W(mm) | ||
| Show content | Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication unit, battery power indication, fault code indication, start mode indication, single and dual drive indication, etc. | |||
| Function setting | After short pressing the power button three times continuously to enter the menu setting interface, the meter will display P1, P2, P3, P4, P6, P7, P8, Pa, Pb, Pc; respectively: P1 is the selection setting for kilometers/miles; P2 is the voltage level; P3 is the wheel diameter setting; P4 is the magnetic pole pair number setting; P5 is the cruise and no cruise selection setting; P6 is the non-zero start and zero start selection setting; P7 is the speed limit setting; P8 is the automatic sleep time setting; PA is the starting strength setting; PB is the braking strength setting; PC is the total mileage clearing setting. Speed limit mode: Hold the brake handle and double-click the power button to switch to speed limit mode. In speed limit mode, the instrument border icon flashes (no speed limit by default). |
Check instrument manual for details | ||
| Packing list | User manual*1,charger*1,pump*1,tool*1,bag*1 | without electric scooter | ||
