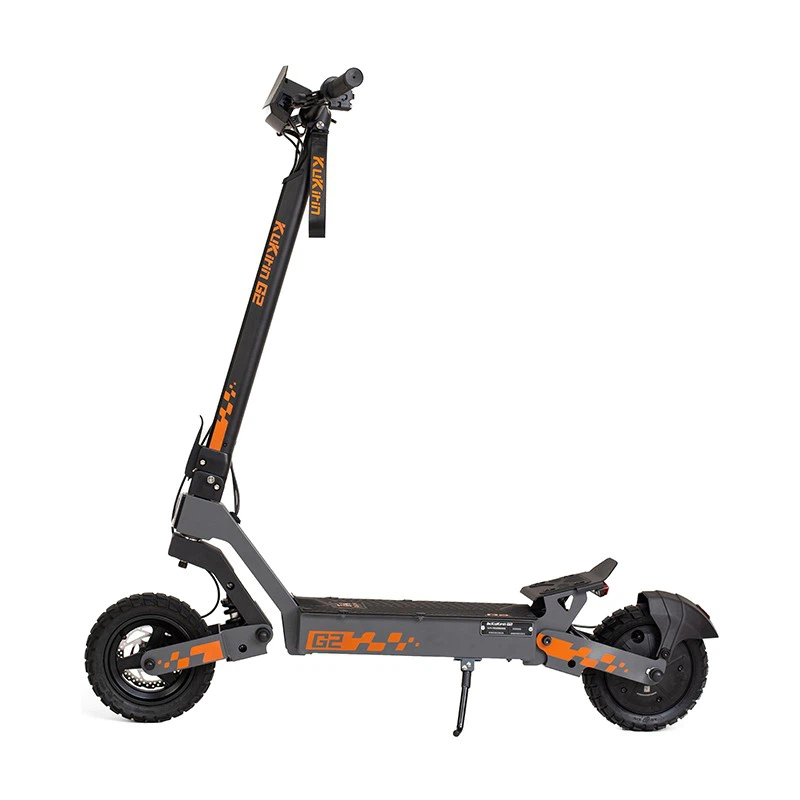

Kukirin G2

Kukirin g2 a scooter scooter is equipped with 10-inch off-road vacuum tires and front and rear spring dampers, whose excellent grip and shock absorption ensure a smooth ride in all road conditions. The design of the vacuum tires reduces the risk of flat tires and increases driving safety and comfort. Whether it's on city tarmac or gravel trails in the countryside, the KuKirin G2 can handle it with ease, providing you with an unparalleled riding experience.

Packing info Packing size 1235*205*575mm Outer box size(mm)

Product basic parameter Weight Product G.W 29.5±0.5kg Total weight of product and canton(kg)

Product N.W 26±0.5kg Scooter weight(kg)

Size Expend size 1258*660*1260mm L*W*H(mm)

Fold size 1258*660*540mm L*W*H(mm)

Handlebar size 660mm Diameter(mm)

Pedal Size 460*185mm L*W(mm)

Pedal to Handlebar size 990mm Pedal to highest handlebar distance(mm)

Chassis height 175mm height from chassis to ground floor(mm)

Max Load 120kg kg

Speed Maxium speed 45km/h Max speed of 65KG load(km/h)

1st,2nd,3rd(idling) 25km/h,35km/h,55km/h Max speed under idling condition(km/h)

"1st,2nd,3rd

(65kg load)" 25km/h,35km/h,45km/h Max speed of 65KG load(km/h)

Mileage Middle speed mileage(65kg load) ≤55km Full power,until to stop(km)

Performance Climbing ability ≤20° slope 65KG load,Max climbing ability(°)

Brake system Front and rear disc brake&e-brake Disc brake,E-brake,other

Brake distance 4-10m Max speed braking stopping distance(m)

Waterproof level IP54 IP

Material Frame material Steel + Aluminum Hybrid Frame

Motor Motor type Integral hub motor (rear wheel single drive) Integrated/split/other hub motor

Voltage 48V V

Accelerate mode Sine wave Sine wave/square wave/dual modes

Power date Rated power 800W W

Instantaneous maximum power 1200W W

Rated speed 1100±30 rpm rpm or r/min

Max output torque 29N.m N·m

Battery Model 18650 Lithoum battery

Voltage 48V V

Capacity Single cell capacity 2500mAh mAh

Battery pack capacity 15Ah Ah

Standard power consumption 0.72kW·h kW·h

Battery protect system Battery protective board(BMS)

Charger Input voltage 100-240VAC~50/60Hz VAC

Input current 3A A

Output voltage 54.6V VDC

Output current 2A A

Charging time 8-9h h

Shock absorber system Front shock absorber Spring shock adsorption Spring shock absorption/Hydraulic damping shock absorption/other

Rear shock absorber Spring shock adsorption Spring shock absorption/Hydraulic damping shock absorption/other

Light System Headlight type LED light source

Headlight power 3W W

Headlight illumination angle 60° Illumination viewing angle width(°)

Headlight illumination area 4㎡ The maximum area normally projected onto the ground(㎡)

Turn light Yes

Taillight Yes,The taillights are on when the headlight is on,taillight flash when breaking.

Tire Size 10in(10*2.75-6.5) tire size( in/mm)

Type Vacuum tire Off road/Honeycomb/Vacuum/Pneumatic tire

Optimum tire pressure 220-230kpa kPa/psi

Insrument Type LED LED/LCD/OLED

Display material Instrument case ABS/instrument bracket PA6

Size 155*55mm L*W(mm)

Show content Speed/power/mileage/cruise control/speed mode/start mode/light mode/mileage unit mode

1. Click set to switch speed and mileage units, long press set to switch non-zero start/zero start.

2. Click mode to switch gears, long press mode to turn off cruise control.

3. Click light to turn on and off the headlights.

4. Click the multi-function button to turn on and off the headlights, double-click to switch gears, long-press to enter the hibernation state, hibernation state click to wake up.

5. Press and hold the brake, click the multi-function button four times in a row to switch the speed limit mode." Check instrument manual for details

Packing list User manual*1,Charger*1,Toolkits*1,Rear fender*1,Rear fender mounting bolts*2. without electric scooter
