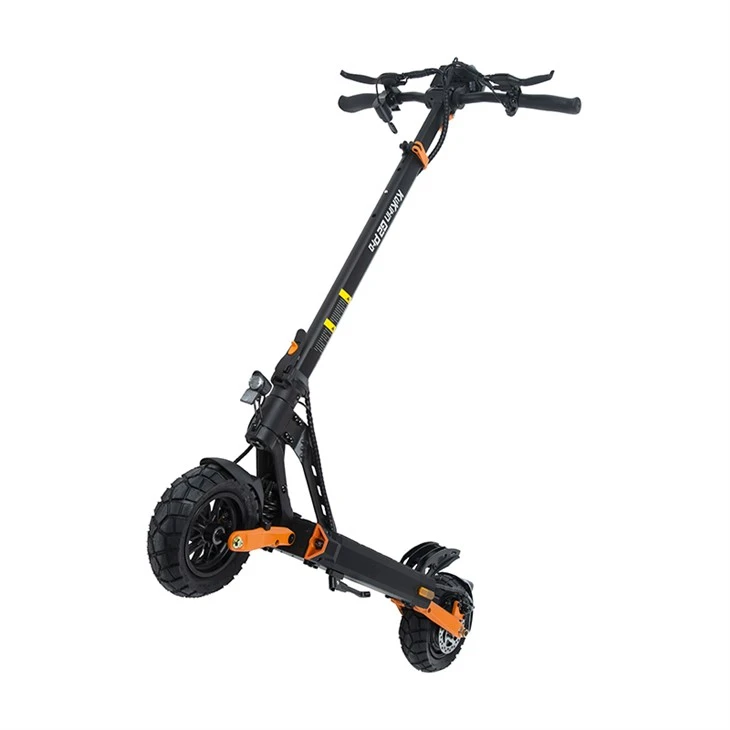

Kukirin G2max

kukirin g2max adopts three LED lights at the front and rear, two auxiliary lighting turn signals at the front in addition to the main headlights, and two turn warning lights at the rear in addition to the brake lights on the tail, 6 LEDs not only satisfy your nighttime driving, but also make your nighttime driving safer, the front and rear brake lights will flash to remind you when you turn, and the tail lights will flash to remind you when you brake.

1,Super-long mileage

2,Super-strong performance

3,Super-excellent appearance

Model KuKirin G2 Max Measurement reference standard(note:unit)

Packing info Packing size 1275*270*620mm(inner)/1290*282*640mm(outer) Inner and outer box size(mm)

electric scooter with seat 1000w Product basic parameter Weight Product G.W 36.82±0.5kg Total weight of product and canton(kg)

Product N.W 31.72±0.2kg Total weight of vehicle with seat (kg)

Size Expend size 1260*605*1300mm L*W*H(mm)

Fold size 1260*605*580mm L*W*H(mm)

Handlebar size 595mm Diameter(mm)

Pedal Size 550*190mm L*W(mm)

Pedal to Handlebar size 1040mm Pedal to highest handlebar distance(mm)

Chassis height 162mm height from chassis to ground floor(mm)

Max Load 120kg kg

Speed Maxium speed 55km/h Max speed of 65KG load(km/h)

1st,2nd,3rd(idling) 15km/h,40km/h,60km/h Max speed under idling condition(km/h)

"1st,2nd,3rd

(65kg load)" 15km/h,40km/h,55km/h Max speed of 65KG load(km/h)

Mileage Middle speed mileage(65kg load) ≤70km Full power,until to stop(km)

Performance Climbing ability ≤22° slope 65KG load,Max climbing ability(°)

Brake system Front and rear disc brake&e-brake Disc brake,E-brake,other

Brake distance 8-12m Max speed braking stopping distance(m)

Waterproof level IP54 IP

adult scooter with seat Material Frame material Aluminum alloy

Motor Motor type Hall brushless DC motor (rear wheel single drive) Integrated/split/other hub motor

Voltage 48V V

Accelerate mode Dual modes Sine wave/square wave/dual modes

Power date Rated power 1000W W

Instantaneous maximum power 1200W W

Rated speed 1100 rpm rpm or r/min

Max output torque 25.04 N·m N·m

Battery Model 18650 Lithoum battery

Voltage 48V V

Capacity Single cell capacity 2600mAh mAh

Battery pack capacity 20.8Ah Ah

Standard power consumption 0.92kW·h kW·h

Battery protect system Battery protective board(BMS)

Charger Input voltage 100-240VAC~50/60Hz VAC

Input current 2A Max A

Output voltage 54.6V VDC

Output current 2A A

Charging time 10-11h h

Shock absorber system Front shock absorber Spring shock adsorption Spring shock absorption/Hydraulic damping shock absorption/other

Rear shock absorber Spring shock adsorption Spring shock absorption/Hydraulic damping shock absorption/other

Light System Headlight type LED light source

Headlight power 6W W

Headlight illumination angle 45° Illumination viewing angle width(°)

Headlight illumination area 5㎡ The maximum area normally projected onto the ground(㎡)

Turn light Yes

Taillight Yes,The taillights are on when the headlight is on,taillight flash when breaking.

Tire Size 10in(255*80mm) tire size( in/mm)

Type Pneumatic tire Off road/Honeycomb/Vacuum/Pneumatic tire

Optimum tire pressure 350kPa(50psi) kPa/psi

Insrument Type LCD LED/LCD/OLED

Display material Instrument case ABS/instrument bracket PA6

Size 133*76mm L*W(mm)

Show content Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication, battery voltage indication, fault code indication, starting mode indication, etc.

Function setting After short pressing the power button three times continuously to enter the menu setting interface, the meter will display P1, P2, P3, P4, P6, P8, Pa, Pb, Pc; respectively: P1 is the selection setting for kilometers/miles; P2 is the voltage level; P3 is the wheel diameter setting; P4 is the magnetic pole pair number setting; P5 is the cruise and no cruise selection setting; P6 is the non-zero start and zero start selection setting; P8 is the automatic sleep time setting; PA is the starting strength setting; PB is the braking strength setting; PC is the total mileage clearing setting. Check instrument manual for details

Packing list User manual1,four-fold leaflet1,Charger1, pump1, tool1, seat kit1, seat base1, seat screws4, key*2 without electric scooter
